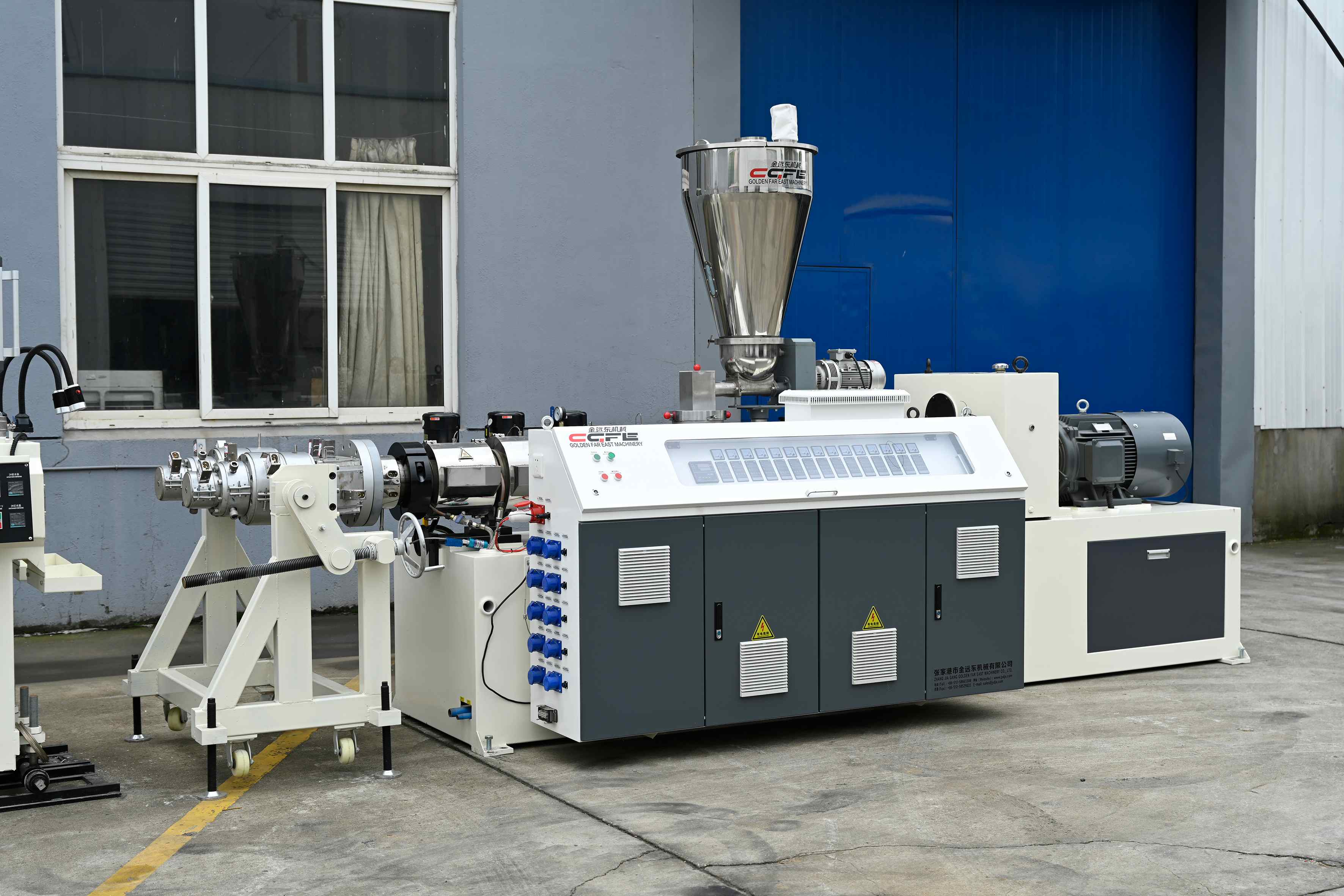

16-63mm PVC dual pipe production line

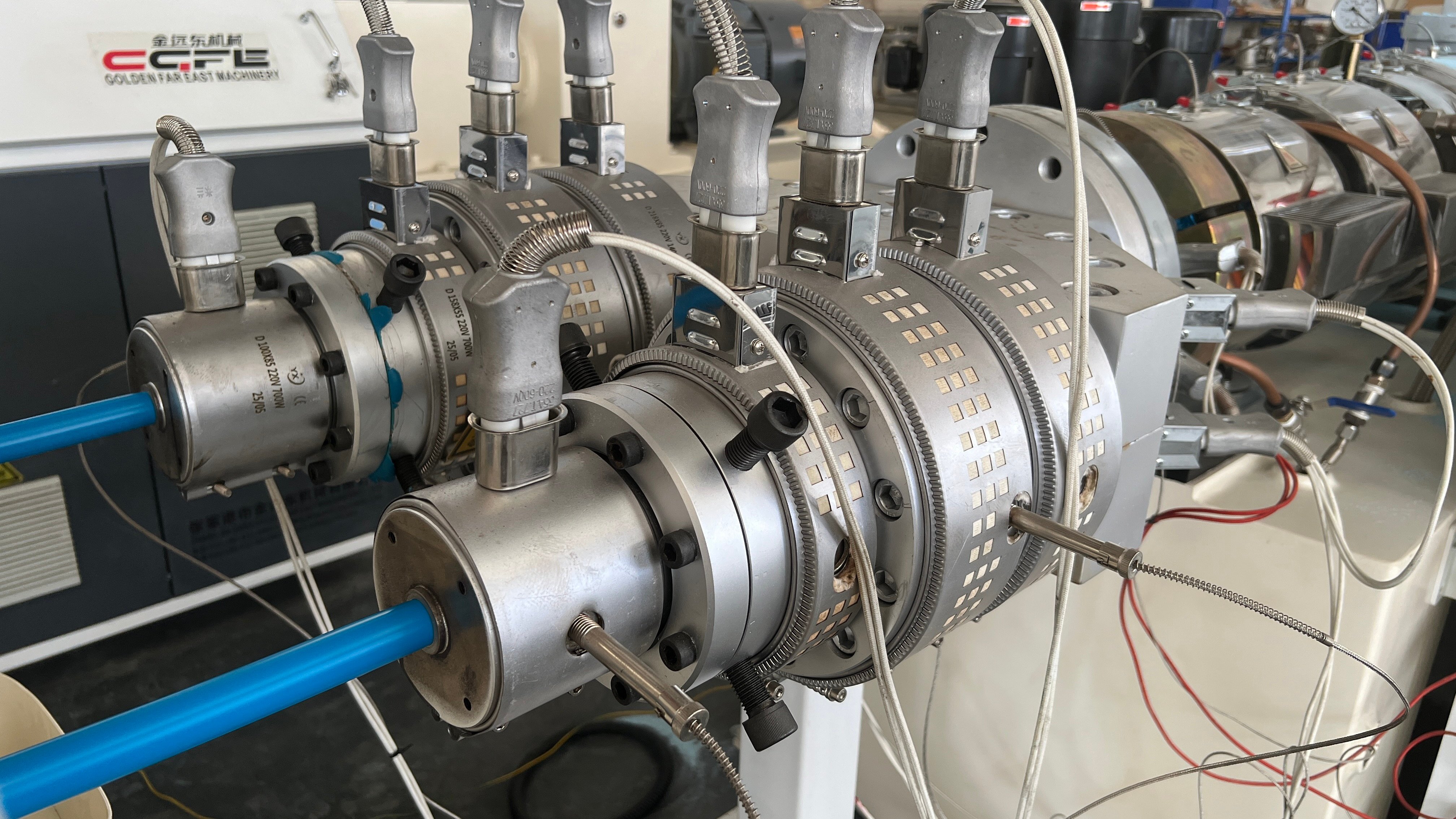

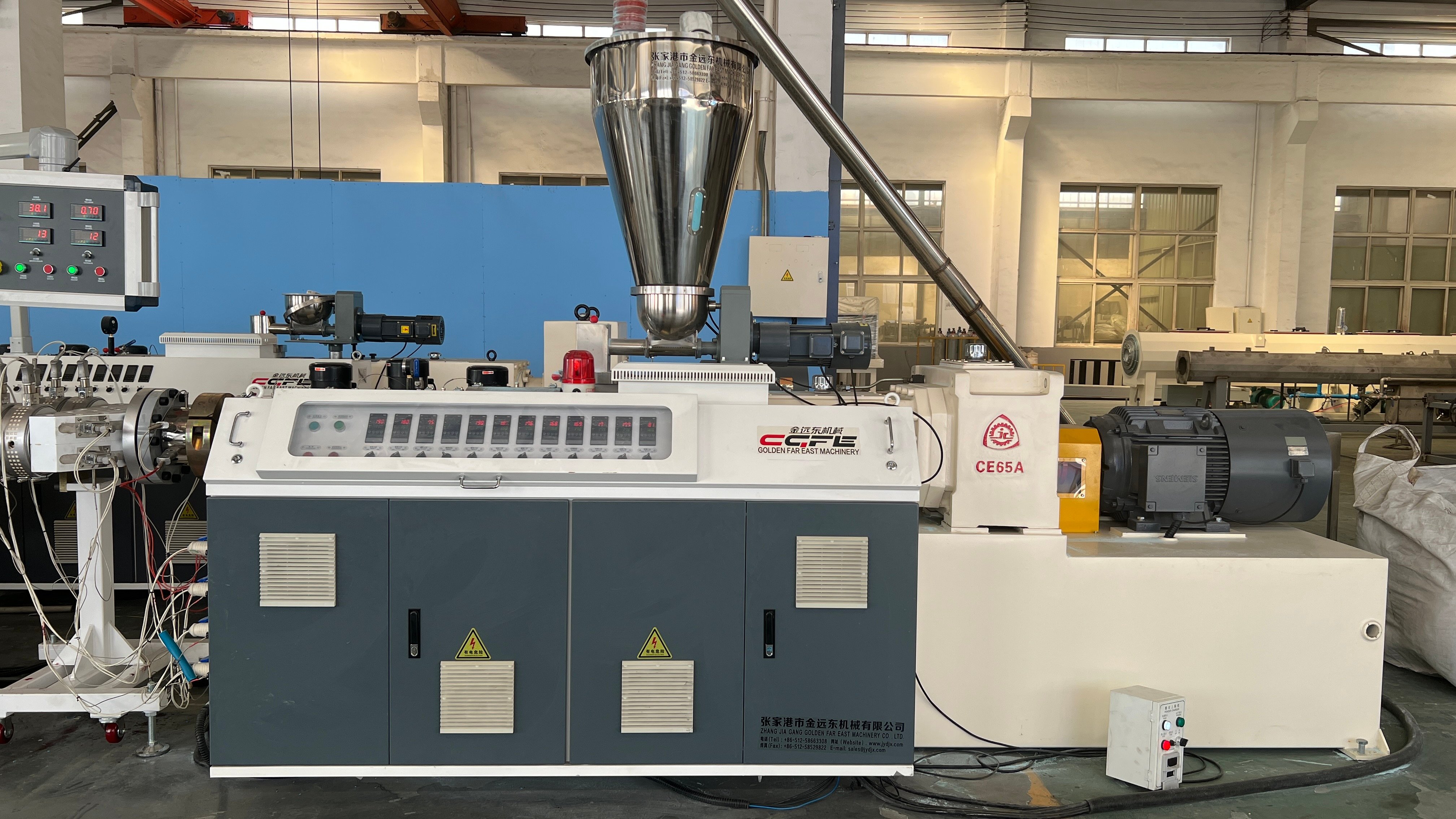

• High torque screw plasticization technology for more stable material handling

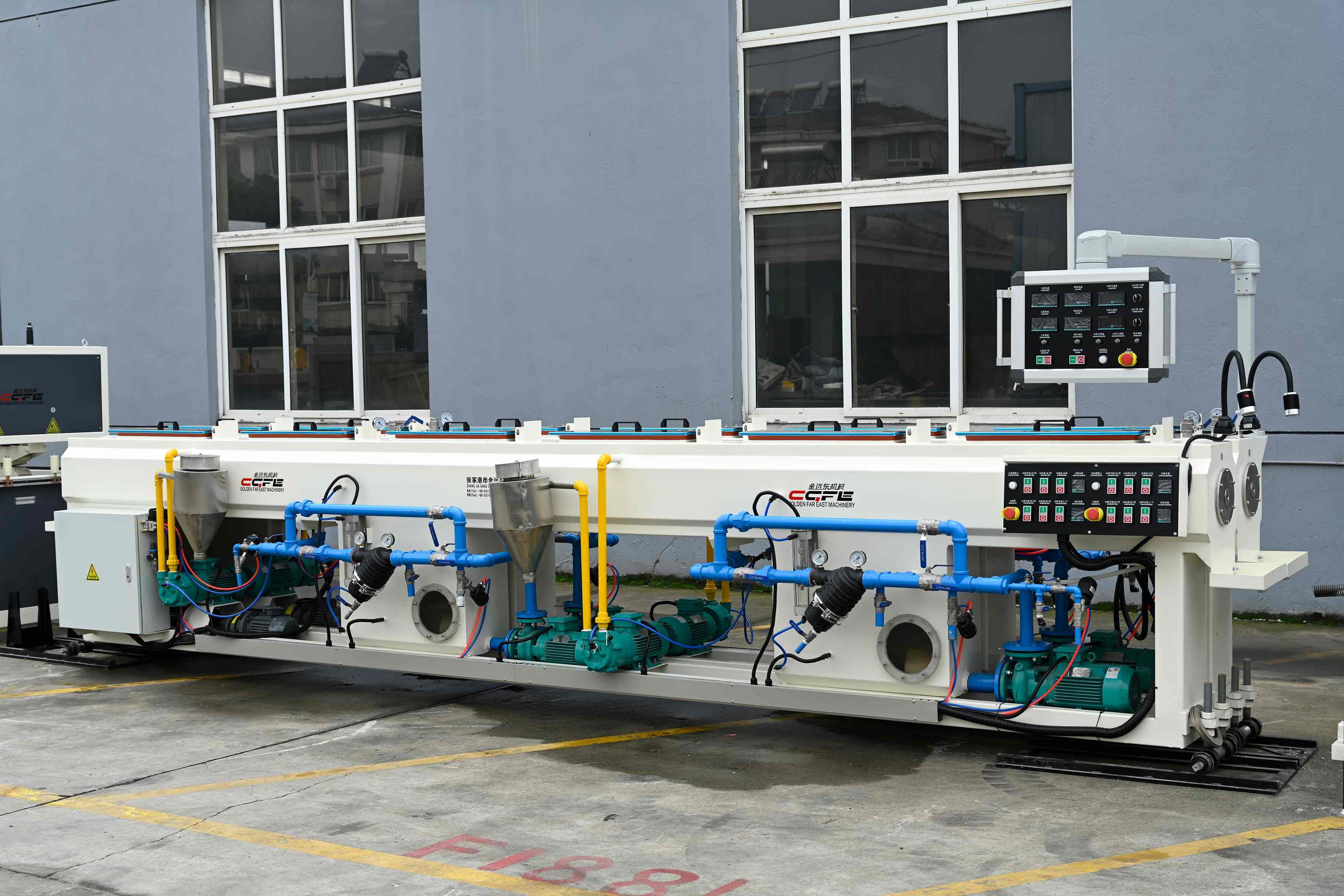

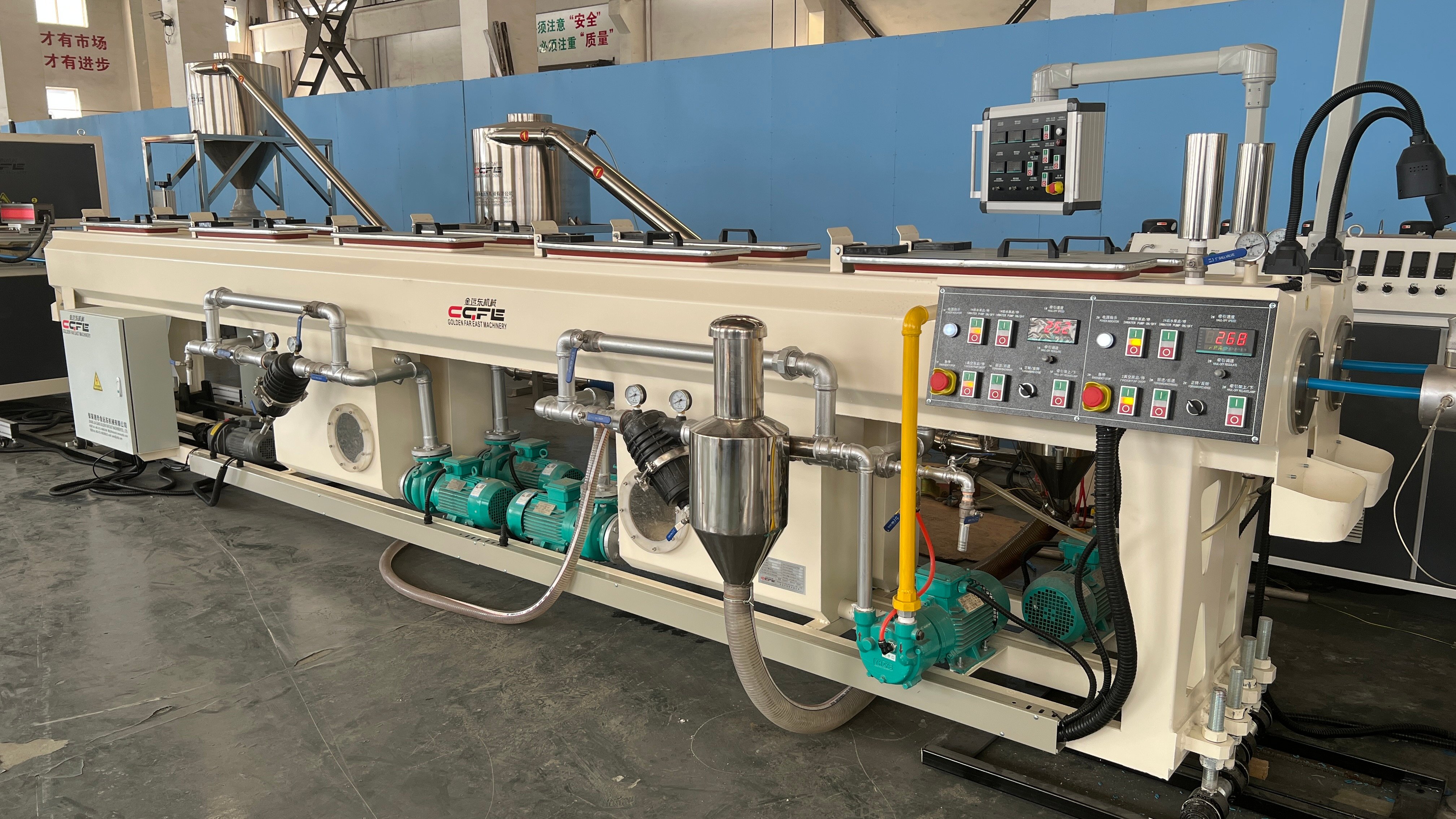

• Vacuum sizing + segmented cooling technology for superior forming accuracy

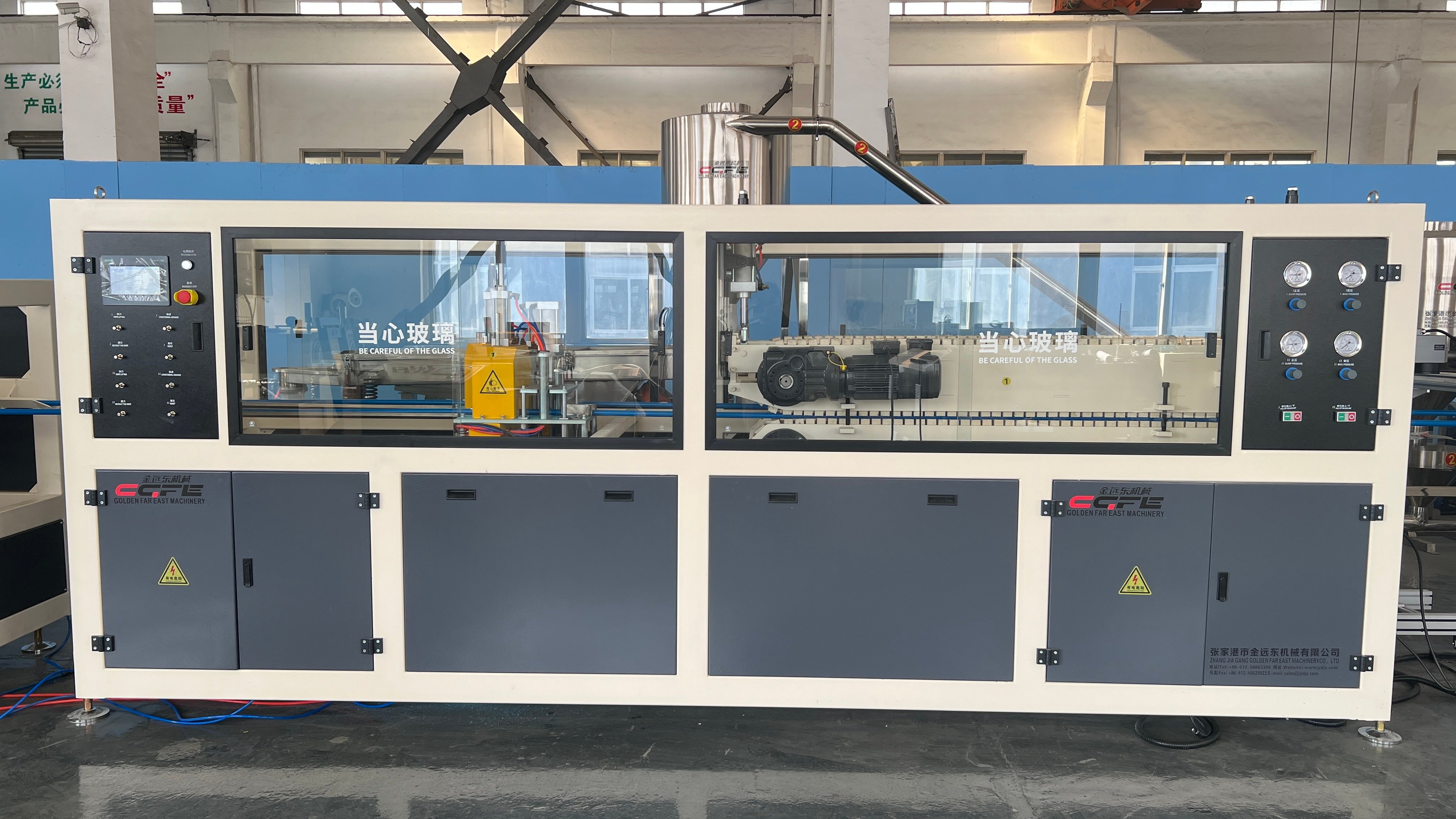

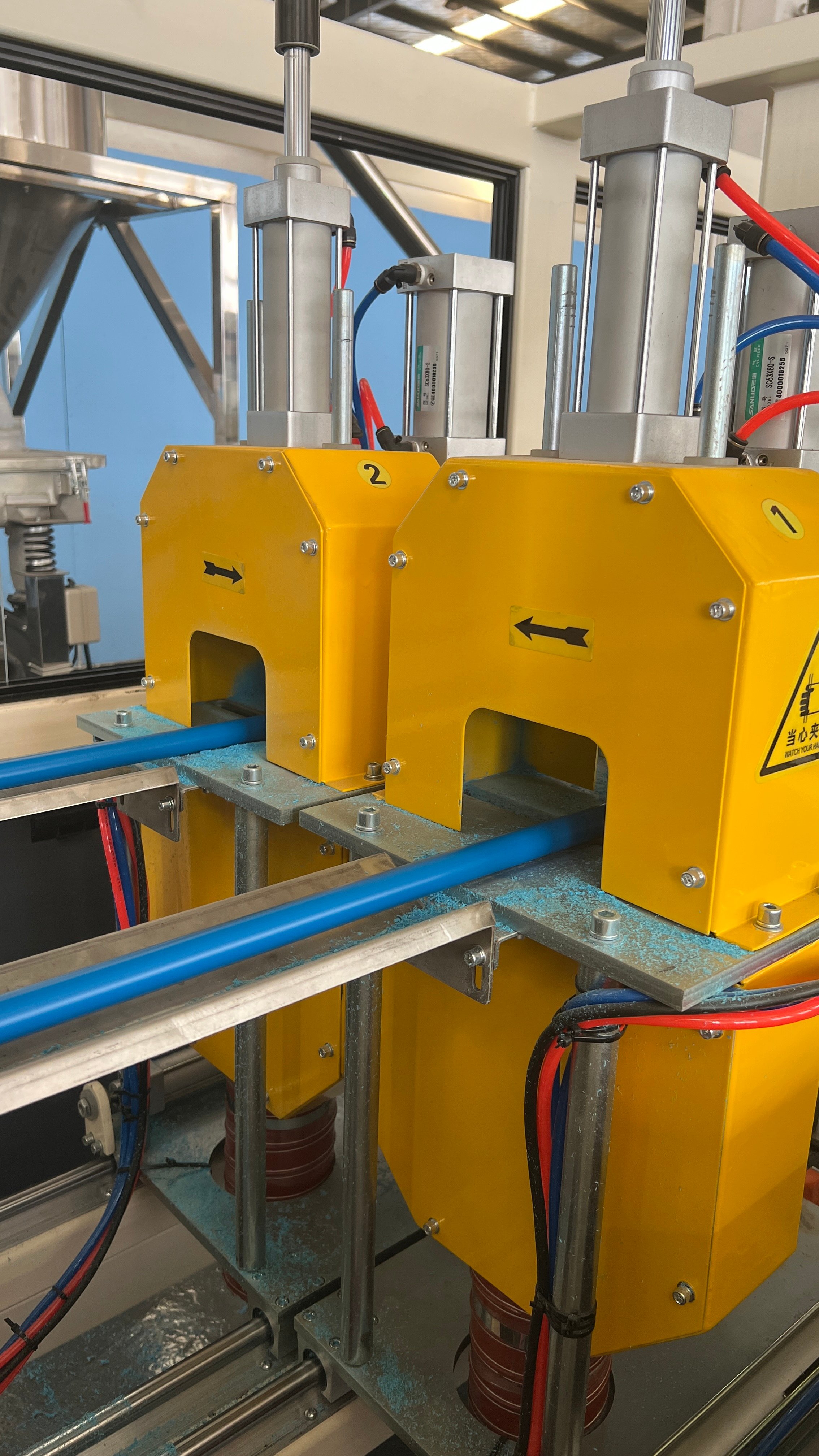

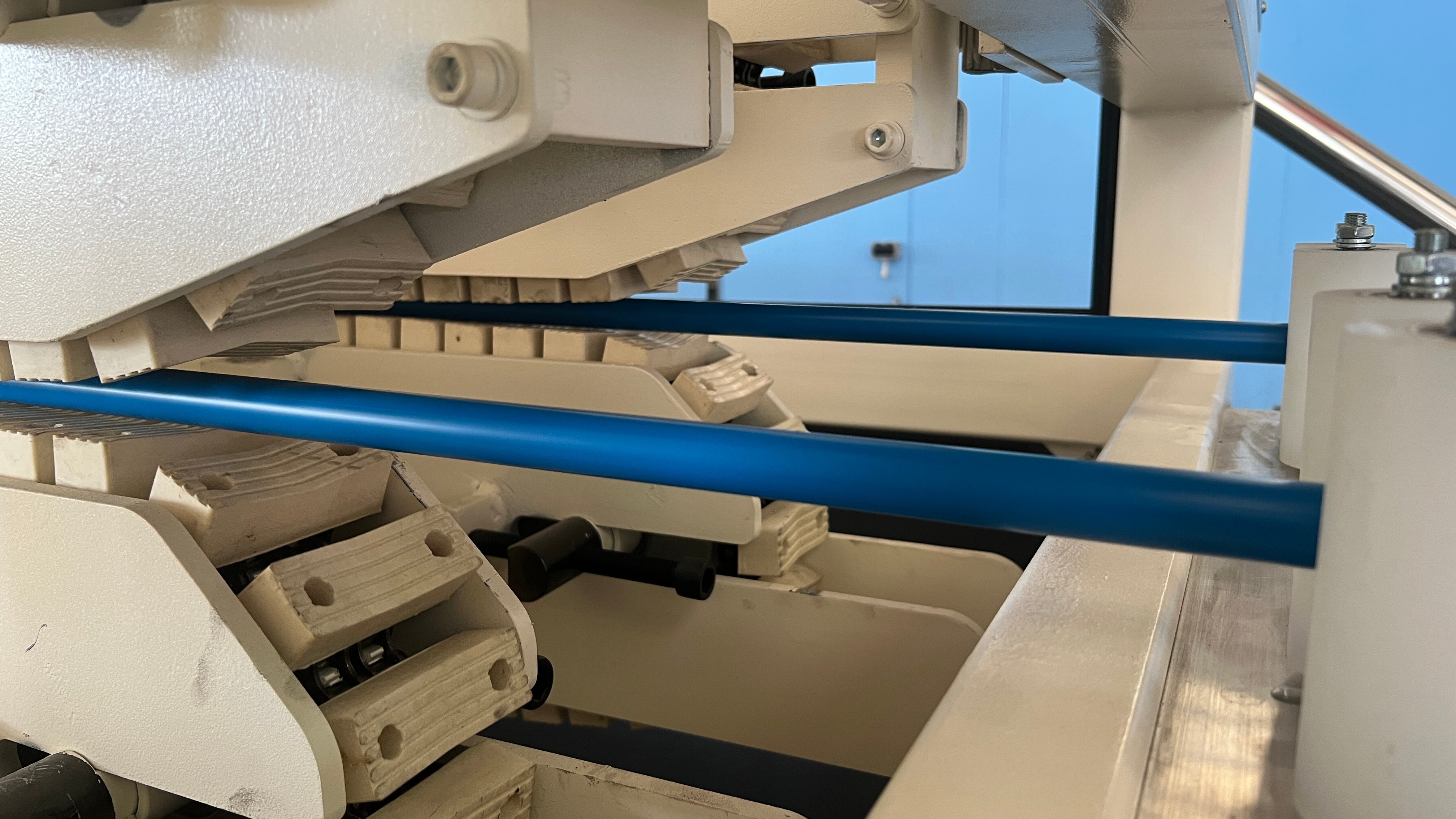

• Servo linkage traction cutting technology, with more outstanding production efficiency

• PLC intelligent control system, more convenient operation and maintenance

• Energy saving and consumption reducing design, more economical overall cost

Overview
Recommended Products

16-63mm PVC Dual Pipe Extrusion Line Description:

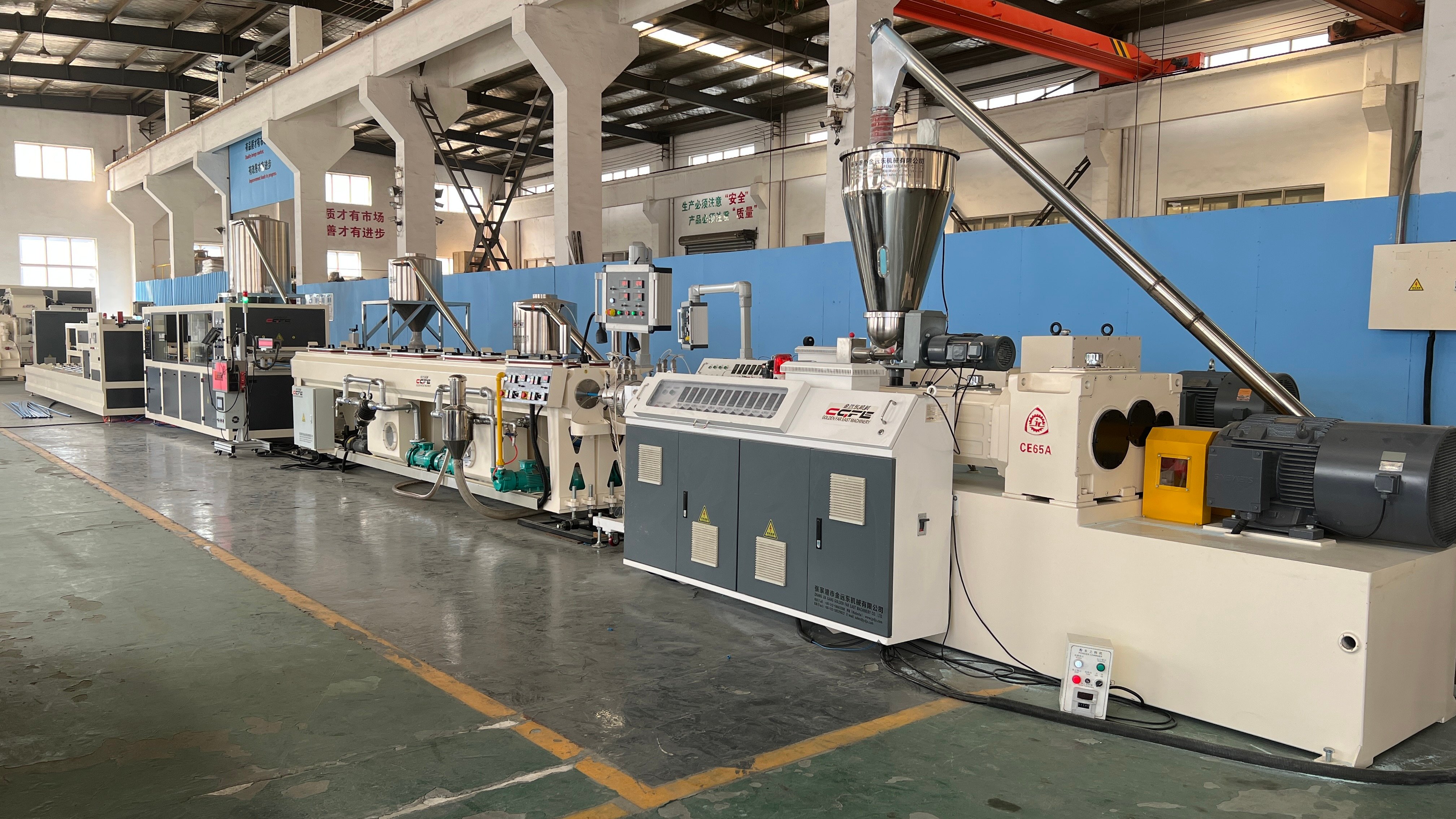

This PVC dual pipe production line is an automated complete set of equipment that integrates mixing, extrusion, shaping, cooling, traction, cutting, and flipping. It is designed for efficient and high-precision production of hard PVC pipes (such as water supply pipes, drainage pipes, threading pipes, power protective sleeves, etc.), and is suitable for large-scale manufacturing of multi specification pipes ranging from φ 16mm to φ 63mm.

PVC Pipe Production Line Video:

Technical Information of PVC Pipe Extrusion Line:

Model	Diameter(mm)	Extruder	Main Motor Power(kw)	Output(kg/h)
JYD-63	16-63	SJSZ65/132	37	200-250
JYD-110	50-110	SJSZ80/156	55	315-400
JYD-160	75-160	SJSZ80/156	55	350-400
