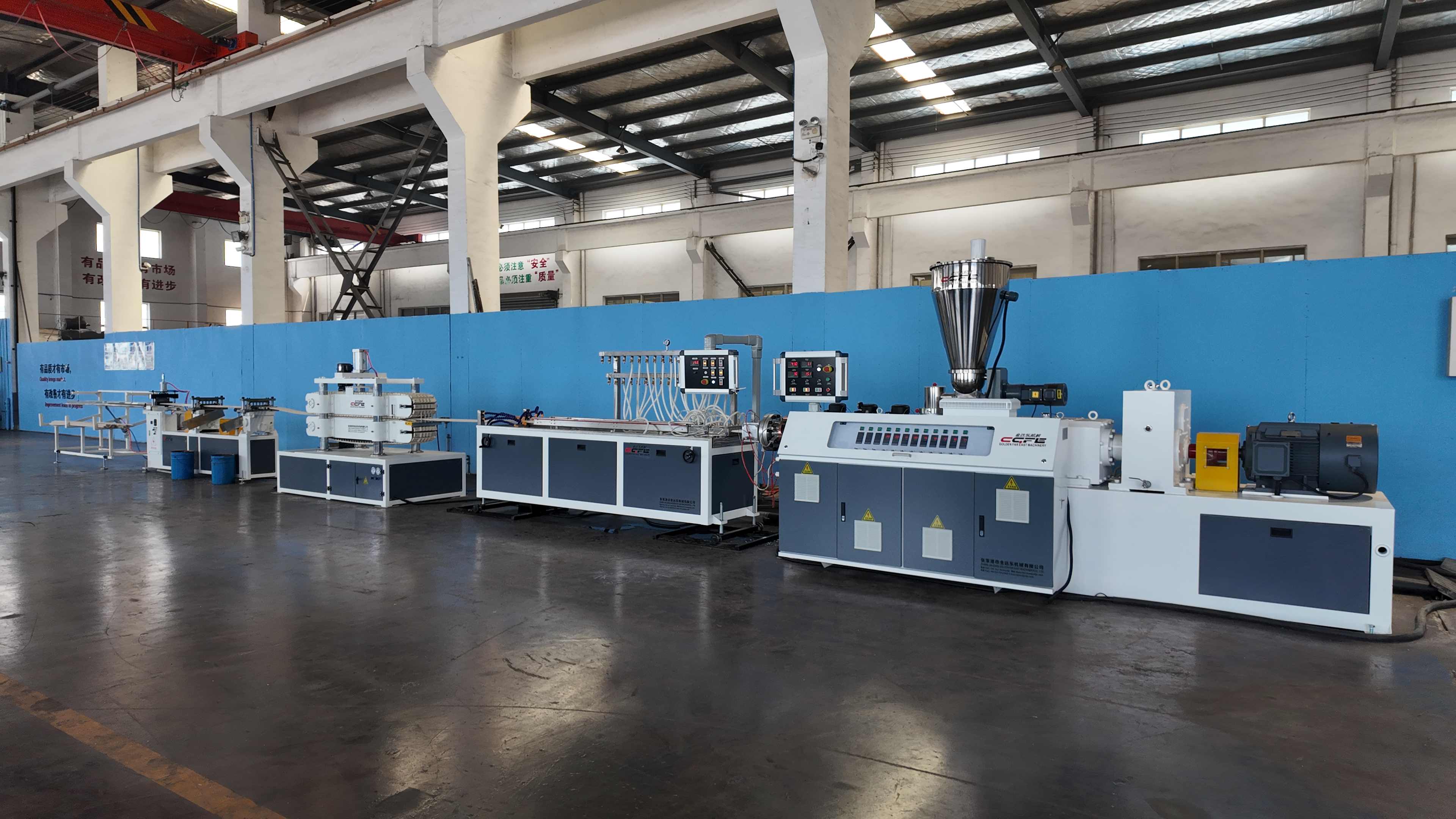

PVC Corner profile production line

Extruder:

Conical twin screw extruder

Screw diameter:

SJSZ65/132

Motor power:

37KW

Capacity:

16-20m/min

Model	JYD-300
PLC control system	Option
Extruder model	SJSZ65/132
Main motor power (kw)	37
Output (kg/h)	≤250

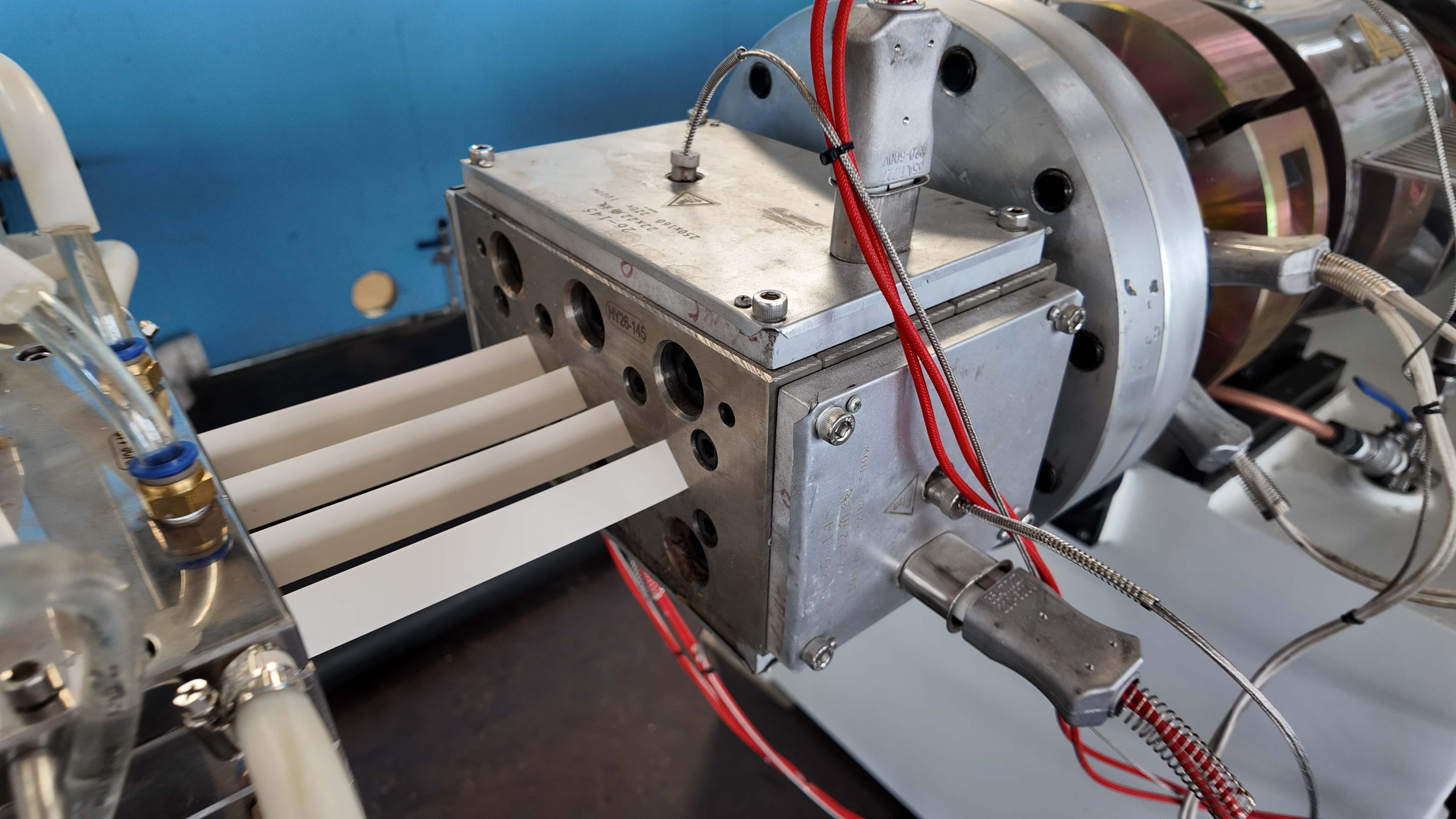

mold	Customized (two/four/six/eight cavity)

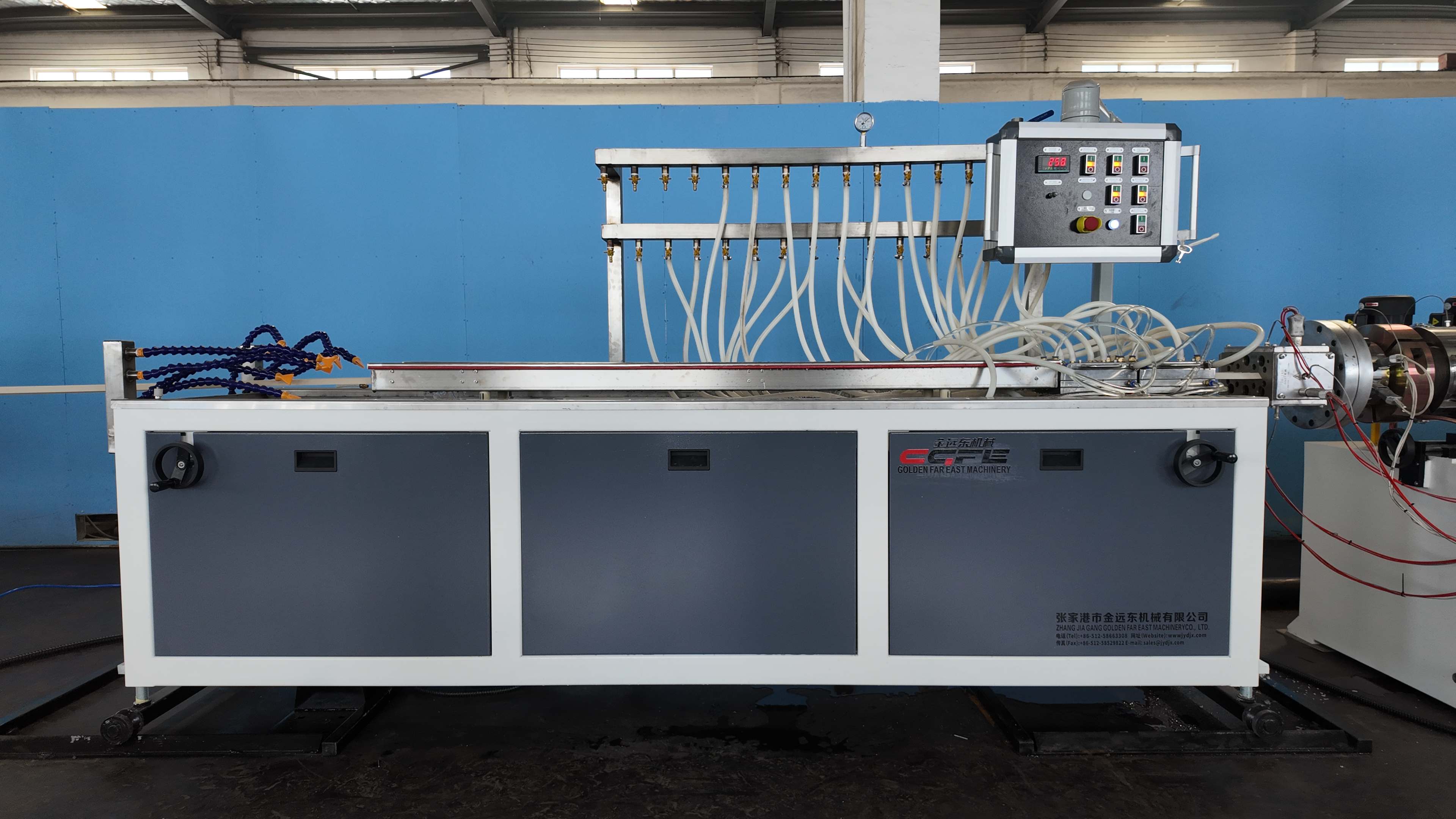

Vacuum calibration table length	4m
Pumps	Vacuum pumps, water pumps

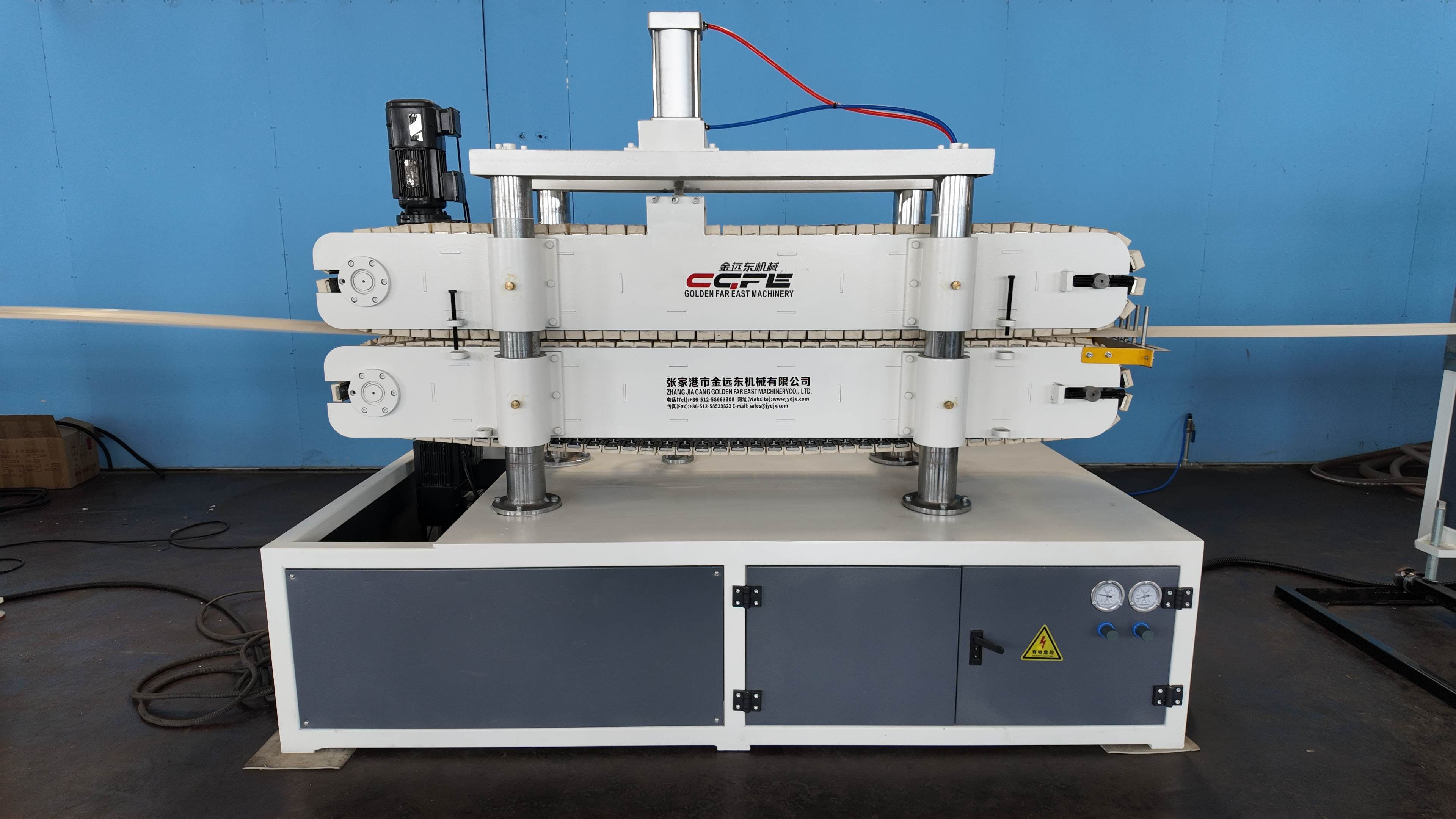

Haul-offs machine	Rubber caterpillars

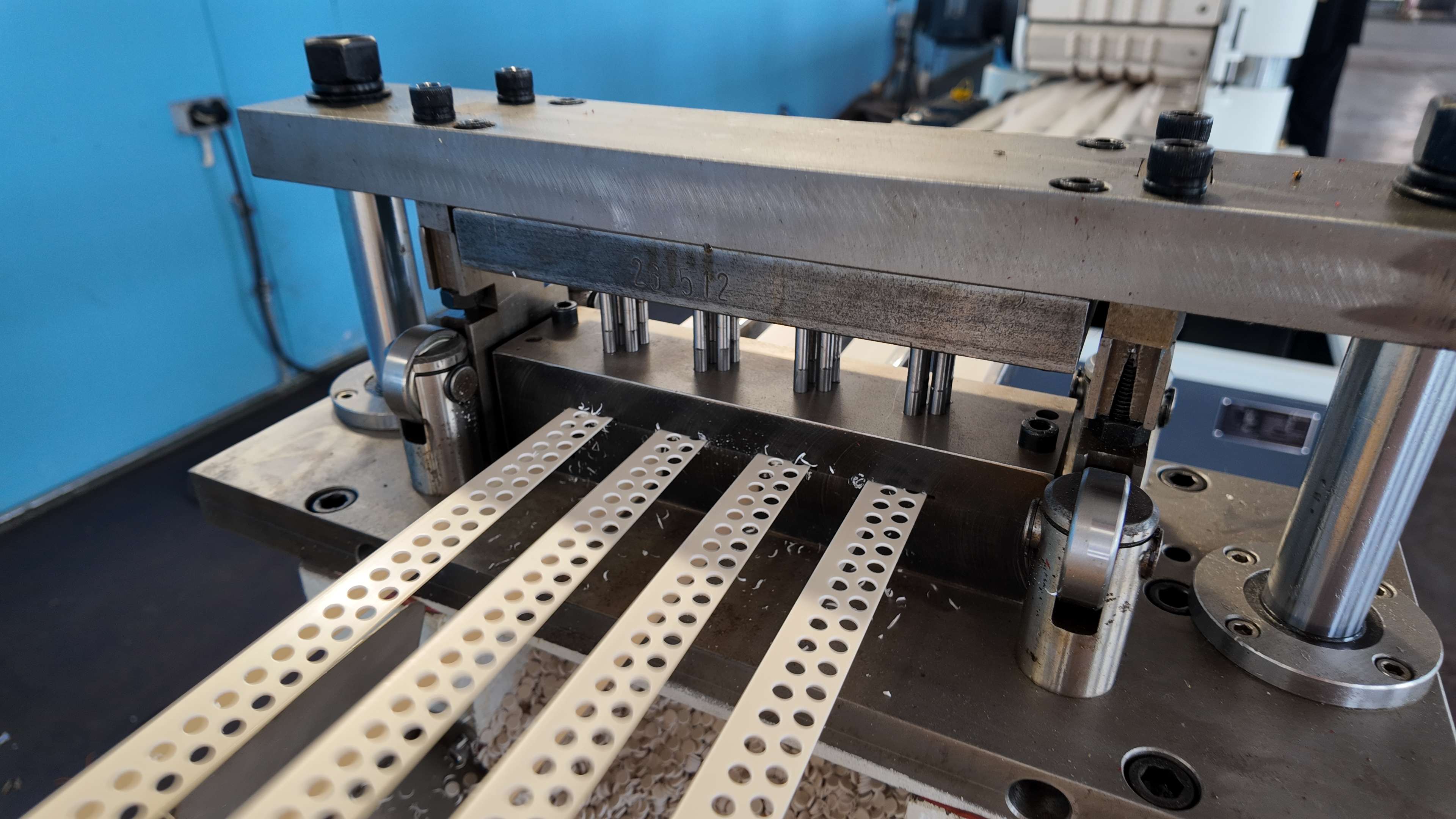

Perforating and cutting machine	Customized as sample
Stacker	3m
Production line length	22m
