110-315mm PVC pipe production line

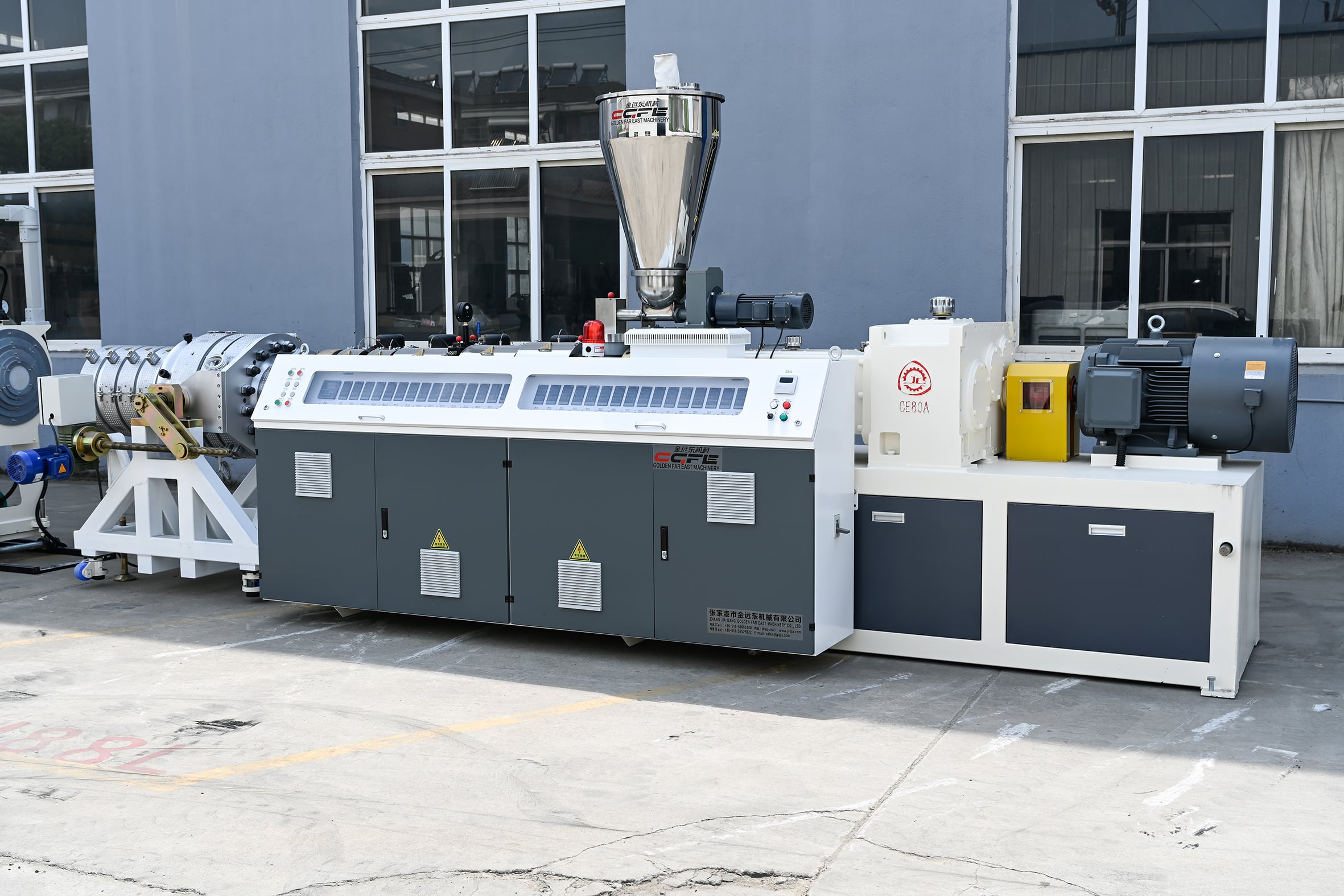

Extruder:

SJSZ80/156

Motor power:

55KW

Capacity:

350-400KG/H

Pipe diameter:

110-315mm

• High torque screw plasticization technology for more stable material handling

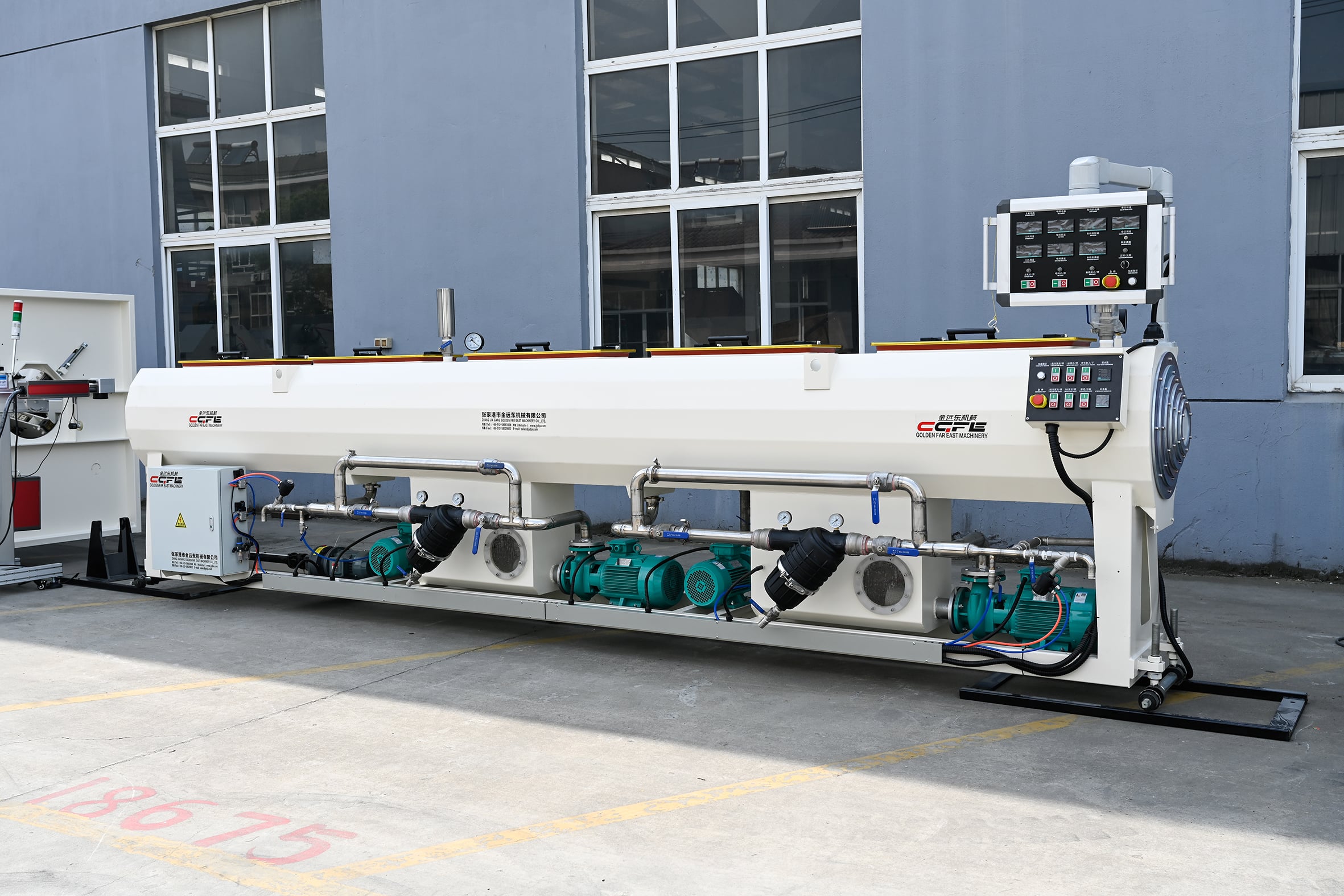

• Vacuum sizing + segmented cooling technology for superior forming accuracy

• Servo linkage traction cutting technology, with more outstanding production efficiency

• PLC intelligent control system, more convenient operation and maintenance

• Energy saving and consumption reducing design, more economical overall cost

Overview
Recommended Products

110-315mm PVC Pipe Extrusion Line Description:

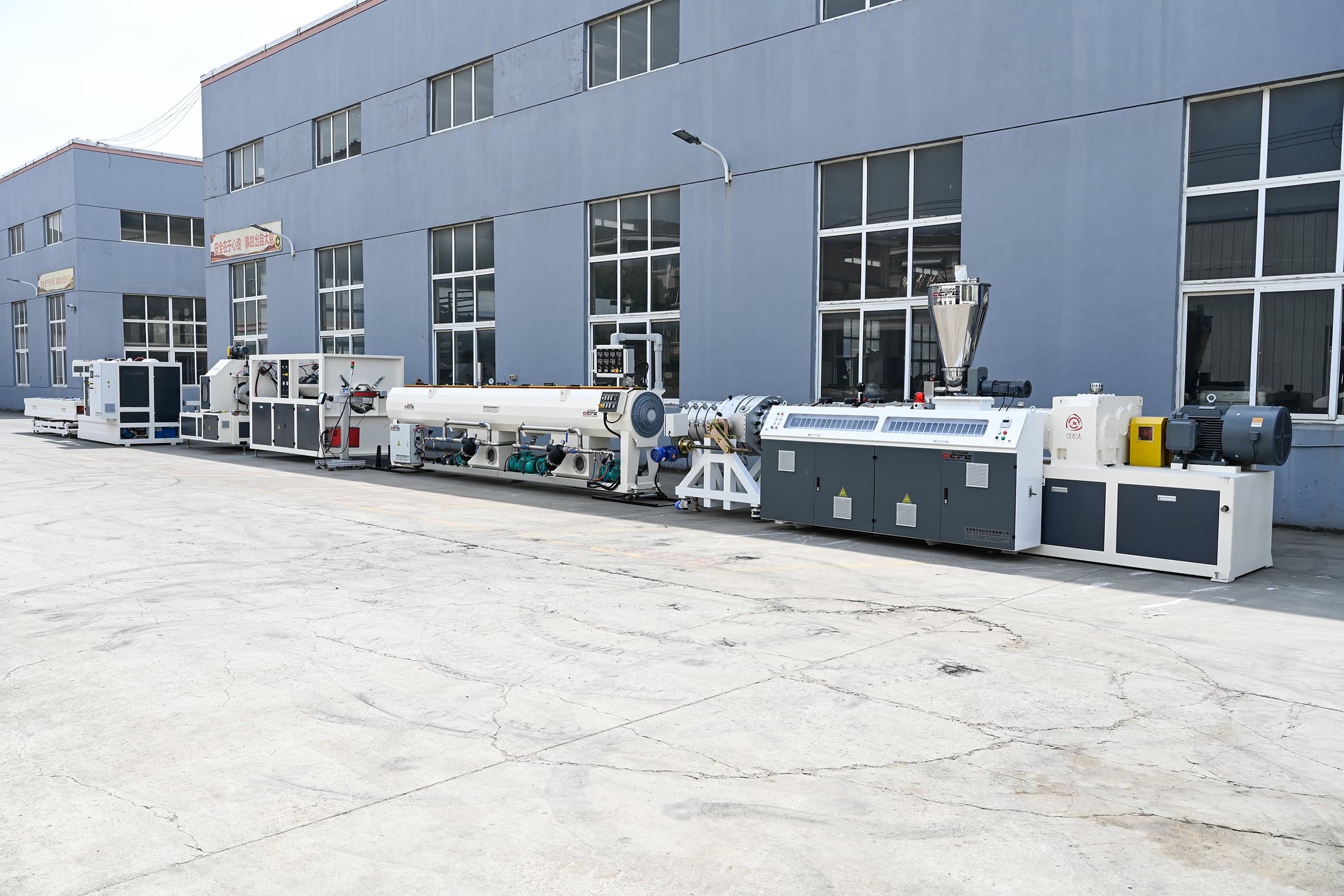

This PVC pipe production line is an automated complete set of equipment that integrates mixing, extrusion, shaping, cooling, traction, cutting, and flipping. It is designed for efficient and high-precision production of hard PVC pipes (such as water supply pipes, drainage pipes, threading pipes, power protective sleeves, etc.), and is suitable for large-scale manufacturing of multi specification pipes ranging from φ 110mm to φ 315mm.

PVC Pipe Production Line Video:

Technical Information of PVC Pipe Extrusion Line:

Model	Diameter(mm)	Extruder	Main Motor Power(kw)	Output(kg/h)
JYD-110	20-110	SJSZ65/132	37	200-250
JYD-160	50-160	SJSZ65/132	37	200-250
JYD-250	110-250	SJSZ80/156	55	350-400
JYD-400	160-400	SJSZ80/156	55	350-400
JYD-630	315-630	SJSZ92/188	110	600-800
JYD-1000	630-1000	SJSZ92/188	160	800-1000
