315-630mm HDPE pipe production line

Product General Information:

Commercial Terms of Products:

Description:

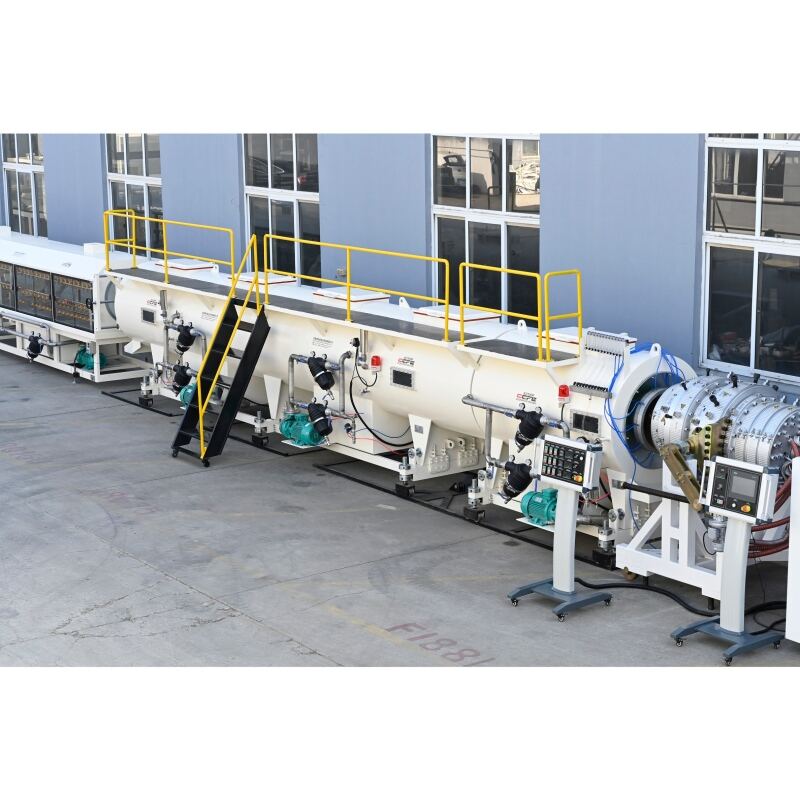

This HDPE pipe production line is a fully automatic set of equipment that integrates raw material mixing, melt extrusion, vacuum sizing, cooling forming, servo traction, online cutting, and finished product winding/stacking. It is designed for efficient and high-quality production of high-density polyethylene (HDPE) pipes and is suitable for the manufacturing of full specification pipes ranging from 20mm to 1200mm. It can produce various types of HDPE pipes such as water supply pipes, gas pipes, sewage pipes, and steel reinforced spiral corrugated pipes.
Based on more than 20 years of experience in the research and development of extrusion equipment, the core configuration of the production line is an efficient single/twin screw extruder. The length to diameter ratio and groove structure of the screw are optimized according to the viscoelastic characteristics of HDPE materials, and a precise temperature control system is used to achieve low-temperature and efficient plasticization of materials, avoid high-temperature degradation, and ensure the toughness and pressure resistance of pipes. The host adopts variable frequency speed regulation technology, with stable and controllable extrusion volume, and a maximum extrusion efficiency of up to 1200kg/h, meeting the needs of large-scale production.

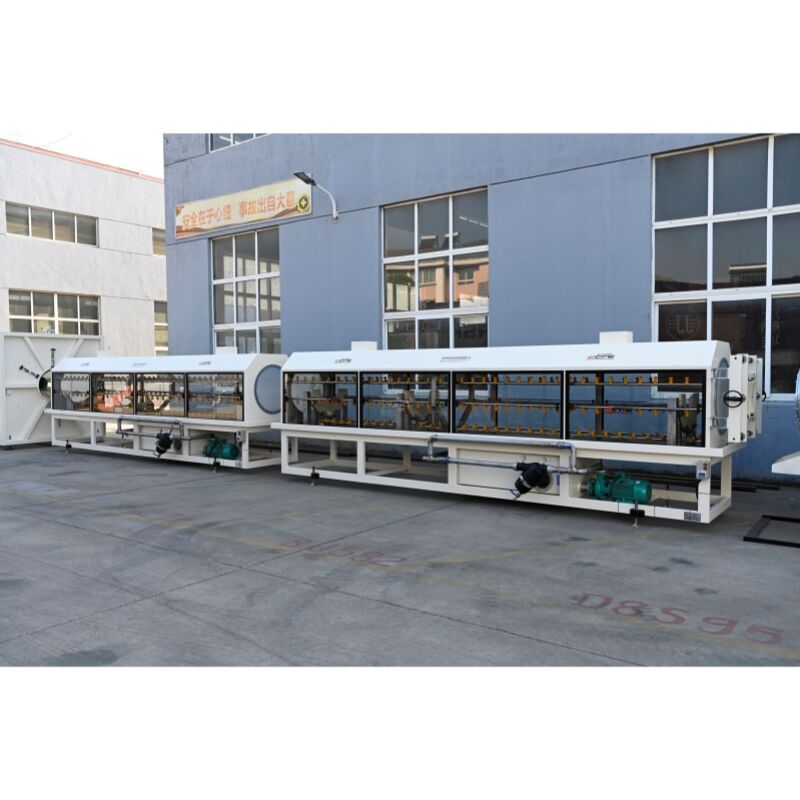

The production line adopts a composite shaping process of internal pressure sizing and spray cooling. Large diameter pipes are matched with multiple sets of crawler tractors, while small diameter pipes are adapted with roller traction and automatic winding devices. Internal pressure sizing ensures high roundness and accurate dimensional accuracy of the pipe by precisely controlling the air pressure inside the pipe, and the wall thickness tolerance can be controlled within ± 0.2mm; The segmented spray cooling system adopts a gradient cooling design, effectively eliminating internal stress in the pipes and avoiding deformation and cracking. The finished pipe ring stiffness can reach SN8-SN16, far exceeding the national standard requirements.
The entire line is equipped with a PLC intelligent integrated control system, which supports real-time monitoring, storage, and one click calling of production parameters (temperature, pressure, speed, cutting length), preset multi specification pipe production formulas, and reduces production time to within 20 minutes. Simultaneously equipped with quality monitoring modules such as online wall thickness detection and laser diameter measurement, which can automatically remove non-conforming products; The fault self diagnosis and shutdown protection function significantly reduces the cost of manual intervention and improves the safety of equipment operation.
This production line is compatible with the processing needs of HDPE pure materials, modified materials and recycled materials. The produced pipes have the advantages of corrosion resistance, aging resistance, good flexibility, convenient connection, and comply with GB/T 13663, ISO 4427 and other domestic and foreign standards. They are widely used in municipal water supply and drainage, gas transmission, agricultural irrigation, mine drainage and other fields. The equipment is exported to dozens of countries and regions around the world, and is trusted by customers at home and abroad for its stable performance and comprehensive after-sales service.

Applications:

630mm HDPE pipe belongs to medium caliber plastic pipe, which combines the core advantages of HDPE material corrosion resistance, good flexibility, impact resistance, low fluid resistance, and convenient connection. Paired with high standard pipes produced by professional production lines, it is widely suitable for municipal infrastructure, water conservancy irrigation, environmental protection management, industrial transportation and other scenarios. The specific applications are as follows:

Municipal water supply and drainage system

Urban water supply secondary main pipe: used for laying water supply networks in urban built-up areas, townships and streets, as well as renovating old cast iron pipe networks. It can transport drinking water and recycled water, and is buried underground to resist soil corrosion and reduce pipe network leakage rate.
Rainwater and sewage diversion branch pipes: as urban rainwater drainage branch pipes and residential sewage collection pipes, they can quickly dredge accumulated water and collect domestic sewage, and their anti-aging performance can ensure long-term buried operation of pipelines.

Farmland Water Conservancy and Water saving Irrigation

Irrigation district water supply pipeline: In the construction of high standard farmland and medium-sized irrigation districts, as a water supply branch, it realizes medium distance transportation of water sources, adapts to complex terrain in the field, is easy to install and has low maintenance costs.
Drip irrigation/sprinkler irrigation supervisor: connects the irrigation pump station with the field branch pipe, resistant to water pressure and not easily blocked, helping to save water and increase efficiency in agriculture, and adapting to the irrigation needs of large-scale planting bases.

Environmental Protection and Sewage Treatment

Domestic sewage collection: used for the construction of sewage pipelines in industrial parks and villages, transporting domestic sewage to sewage treatment plants. HDPE material is resistant to acid and alkali corrosion, avoiding soil pollution caused by sewage leakage.
River regulation and sewage interception: In the black and odorous water treatment project, as the core pipe material for intercepting and receiving sewage, it intercepts coastal sewage and discharges it into the river, improving the effectiveness of water environment treatment.

Industrial and mining auxiliary transportation

Industrial water supply and drainage pipelines: used for transporting factory circulating cooling water and process water, with low fluid resistance, improving the efficiency of industrial water circulation; It can also transport industrial wastewater with low corrosiveness.
Mine auxiliary pipeline: As a drainage and clean water transportation pipeline for mining underground, it is impact resistant, lightweight, and easy to install and maintain in narrow underground spaces.

Landscape Greening and Landscape Engineering

Park greening water supply: used for greening irrigation water supply in urban parks and scenic spots, as well as water replenishment pipelines for artificial lakes and landscape rivers. It has strong weather resistance and is suitable for long-term outdoor use scenarios.
Golf course irrigation: As the supervisor of the course irrigation system, we accurately deliver water sources to various irrigation areas to ensure the water demand for lawn maintenance.

Specifications:

Competitive Advantage:

High production capacity and stable molding： By using length to diameter ratio screws and spiral die heads, optimizing the distribution of flow channels and melt, and combining with melt cooling and vacuum closed-loop control, the problem of sagging of large-diameter pipes is effectively suppressed, ensuring uniform wall thickness and dimensional stability; Multi layer co extrusion structure can achieve functional layering (such as anti-static and anti-corrosion), balancing performance and cost; The online measurement and weight control system provides real-time correction, significantly reducing the scrap rate and suitable for stable delivery in large quantities.
Low energy consumption and yield control： Low temperature extrusion process reduces material degradation, efficient driving and intelligent temperature control (± 1 ℃) improve energy utilization efficiency, with a common energy-saving range of 15% -35% in the industry; Rice weight closed-loop and chip free cutting reduce the loss of cutting heads, tails, and corner materials, shorten preheating and start-up time, further reduce unit costs, and enhance profitability.
Modularization and rapid changeover: The mold quick change design is compatible with the entire production line, and can cover multiple pipe diameters of 800mm and above on the same production line. It supports single-layer/multi-layer co extrusion switching and is suitable for mixed production of multiple specification orders; Short downtime for changeover, high capacity utilization, and enhanced market responsiveness.
Automation and Quality Traceability： The entire line adopts PLC/SCADA linkage, servo synchronous control of traction, cutting, stacking and other links, reducing manual intervention; Remote monitoring and warning functions can quickly detect and handle anomalies, reducing downtime; Key parameters are fully recorded and traced to meet quality system and project audit requirements, reducing compliance risks.
Full lifecycle cost advantage： Equipment design emphasizes durability and ease of maintenance, coupled with localized spare parts libraries and remote diagnostic services, which can quickly solve faults and shorten downtime; After long-term operation, the operation and maintenance costs and downtime losses are significantly reduced, and the investment return cycle is shorter.
Compliance and scenario adaptation： The pipes produced by the production line can meet the national/industry standard requirements in the fields of water supply, gas, sewage, etc., and have excellent resistance to environmental stress cracking, corrosion, and thermal fusion performance. They can be directly used for key projects such as municipal main pipes, water conservancy water diversion, and garbage leachate treatment, ensuring smooth project acceptance and long-term reliable operation.
